MPPT Solar Inverters

Advanced MPPT technology with high efficiency conversion | Grid-Tie & Off-Grid Hybrid

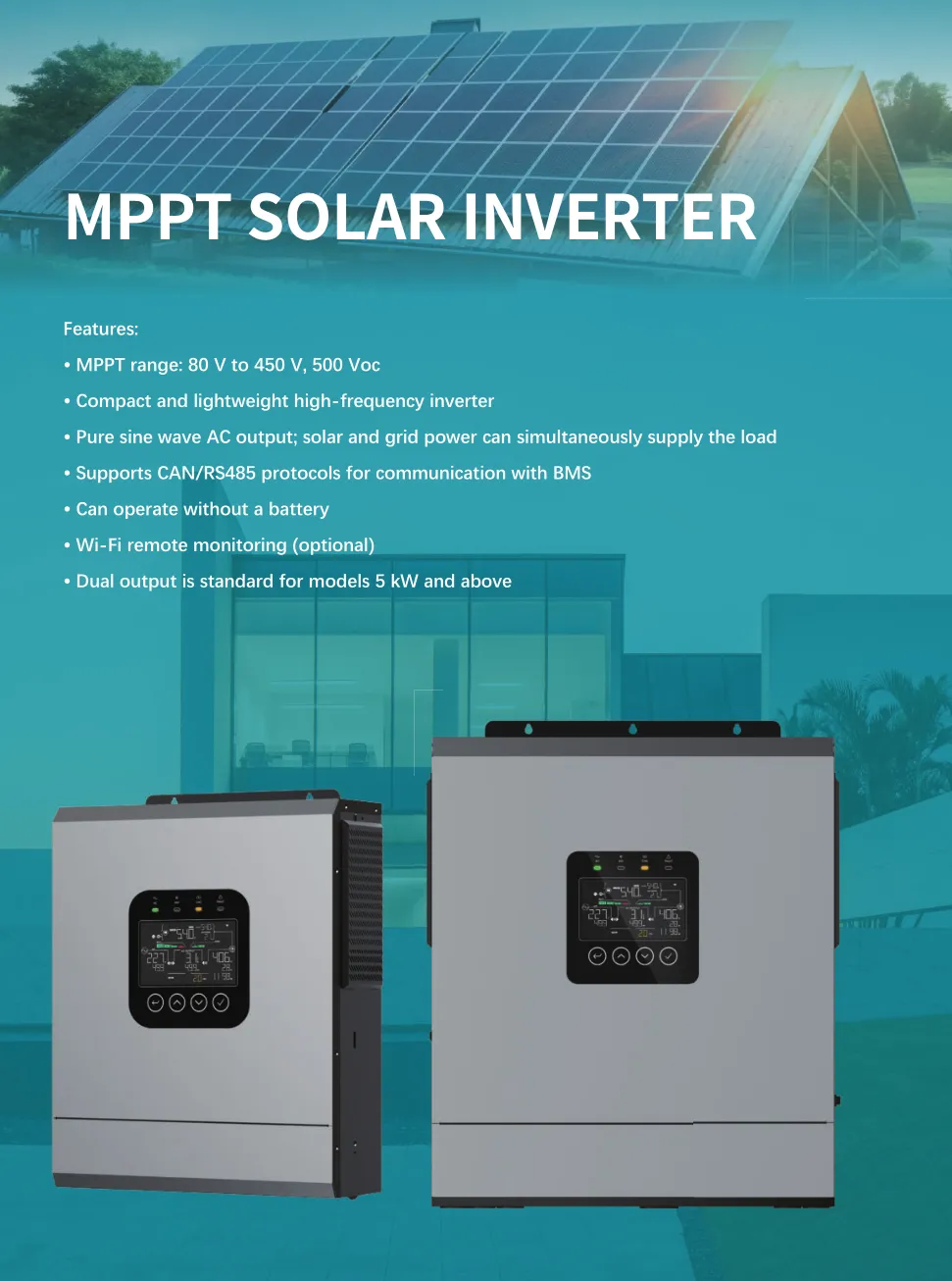

MPPT Inverter

MPPT Solar Inverter Series

PV5000-24 S3.6 / PV9000-24 S5.0 / PV9000-48 S6.0 / PV15000-48 S12

Key Features

  • MPPT Range: 80V-450V (500V Voc) - Wide voltage window for optimal solar harvest
  • Compact & Lightweight High-Frequency Design
  • Pure Sine Wave AC Output
  • Solar & Grid Power Simultaneously Supply Load
  • CAN/RS485 Protocols for BMS Communication
  • Battery-Free Operation Supported
  • Wi-Fi Remote Monitoring (Built-in for 5KW+ models)
  • Dual Output Standard (5KW and above)
  • Peak Efficiency: 92.7%-94%
Request Quote

Product Models

PV5000-24 S3.6 (3.6KW)

24VDC System | 100A Battery Charging | External Wi-Fi

Power Output

Rated Power3600W
Peak Power7200VA
Output Voltage208/220/230/240VAC±5%
Output Frequency50/60Hz±0.2%
WaveformPure Sine Wave

PV Input

MPPT Voltage Range40-450Vdc
Max Input Voltage500Vdc
Max Input Current18A
Max PV Power5000W
Optimum Vmp300-400Vdc

Battery

Rated Voltage24Vdc
Max Charging Current100A
Max Discharging Current150A
Battery TypeLithium / Lead-acid

Dimensions

D x W x H420×284×94 mm
Net Weight6.2 kg
Efficiency92.7% (Battery Mode)

PV9000-24 S5.0 (5KW)

24VDC System | 160A Battery Charging | Internal Wi-Fi | Dual Output

Power Output

Rated Power5000W
Peak Power10000VA
Output Voltage208/220/230/240VAC±5%
Output Frequency50/60Hz±0.2%
WaveformPure Sine Wave
Overload1min@102%-110%, 10s@110%-200%

PV Input

MPPT Voltage Range40-450Vdc
Max Input Voltage500Vdc
Max Input Current27A
Max PV Power9000W
Optimum Vmp300-400Vdc

Battery

Rated Voltage24Vdc
Max Charging Current160A
Max Discharging Current190A
Battery TypeLithium / Lead-acid

Dimensions

D x W x H410×336×110 mm
Net Weight8.4 kg
Efficiency93.5% (Battery Mode)

PV9000-48 S6.0 (6KW)

48VDC System | 120A Battery Charging | Dual MPPT Support | Dual Output

Power Output

Rated Power6000W
Peak Power12000VA
Output Voltage208/220/230/240VAC±5%
Output Frequency50/60Hz±0.2%
WaveformPure Sine Wave
Overload1min@102%-110%, 10s@110%-200%

PV Input

MPPT Voltage Range60-450Vdc
Max Input Voltage500Vdc
Max PV Power9000W (1 MPPT) / 15000W (2 MPPTs)
Max Input Current27A per MPPT
Optimum Vmp300-400Vdc

Battery

Rated Voltage48Vdc
Max Charging Current120A
Max Discharging Current140A
Battery TypeLithium / Lead-acid

Dimensions

D x W x H410×336×110 mm
Net Weight8.4 kg
Efficiency94% (Battery Mode)

PV15000-48 S12 (12KW)

48VDC System | 160A Battery Charging | Dual MPPT | Dual Output

Power Output

Rated Power12000W
Peak Power24000VA
Output Voltage208/220/230/240VAC±5%
Output Frequency50/60Hz±0.2%
WaveformPure Sine Wave
Overload1min@102%-110%, 10s@110%-200%

PV Input

MPPT Voltage Range60-450Vdc
Max Input Voltage500Vdc
Max PV Power15000W (27A×2 MPPTs)
Max Input Current27A + 27A (Dual MPPT)
Optimum Vmp300-400Vdc

Battery

Rated Voltage48Vdc
Max Charging Current160A
Max Discharging Current220A
Battery TypeLithium / Lead-acid

Dimensions

D x W x H495×425×120 mm
Net Weight15 kg
Efficiency94% (Battery Mode)

Complete Specifications

Parameter PV5000-24 S3.6 PV9000-24 S5.0 PV9000-48 S6.0 PV15000-48 S12
AC Input
Input Format L+N+PE
Rated Input Voltage 208/220/230/240 Configurable
Voltage Range 90~280V (APP/GEN); 170~264V (UPS)
Frequency Range 50Hz/60Hz (adaptive)
AC Output
Output Power Rating 3600W 5000W 6000W 12000W
Output Voltage 208/220/230/240VAC±5%
Output Frequency 50/60Hz±0.2%
Waveform Pure Sine Wave
Switching Time 10ms (Computer); 20ms (Appliances)
Peak Power 7200VA 10000VA 12000VA 24000VA
Overload Capacity 1min@102%-110%load, 10s@110%-200%load
Battery
Rated Voltage 24Vdc 48Vdc
Max Charging Current 100A 160A 120A 160A
Max Discharging Current 150A 190A 140A 220A
Battery Type Lithium / Lead-acid
Charger (PV / AC)
PV Charging Mode MPPT
Max PV Input Power 5000W 9000W 9000W (1 MPPT) / 15000W (2 MPPTs)
MPPT Input Voltage Range 40-450Vdc 60-450Vdc
Optimum Vmp 300-400Vdc
Max PV Input Voltage 500Vdc
Max PV Charging Current 100A 160A 120A 160A
Max AC Charging Current 100A 160A 120A 160A
Interfaces
Communication RS232 / RS485 / CAN
Wi-Fi Monitoring External Wi-Fi Internal Integrated Wi-Fi
Environmental
Operating Temperature -10~60℃
Operating Humidity 5%~95% (no condensation)
Storage Temperature -15~60℃
Altitude 4000m (Derating above 2000m)
Noise ≤50dB
Physical
Dimensions (D×W×H) 420×284×94mm 410×336×110mm / 495×425×120mm (12KW)
Net Weight 6.2 kg 8.4 kg / 15 kg (12KW)
